TIMEZERO modules compatibility with your navigation software

Enhance your navigation with additional modules. Detect what surrounds you, discover the bottom of the sea like never before. Find a wide range of other modules designed to meet the needs of marine professionals as well as recreational boaters.

What is a module?

A module is effectively a plug-in which unlocks features. Modules can be installed and configured easily within TIMEZERO. The modules add features to the software which can for example improve navigation or aid in the management of hardware and personnel.

TIMEZERO offers a large choice of modules to choose from to suit every marine industries’ needs: Weather Routing, Sounder, PBG, WASSP, S63, VDR and more. Find out which modules are compatible with your navigation software thanks to the Comparison List

Leverage more insights with TIMEZERO

Add advanced modules to your software

TIMEZERO Modules compatibility with:


Targets (AIS/ARPA)
Routing
Radar
Sounder
PBG
WASSP
DFF3D
Trawl Positioning
Bottom Hardness
S57 / S63
VDR
OptionalOptionalOptional
OptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptional
Modules integration:

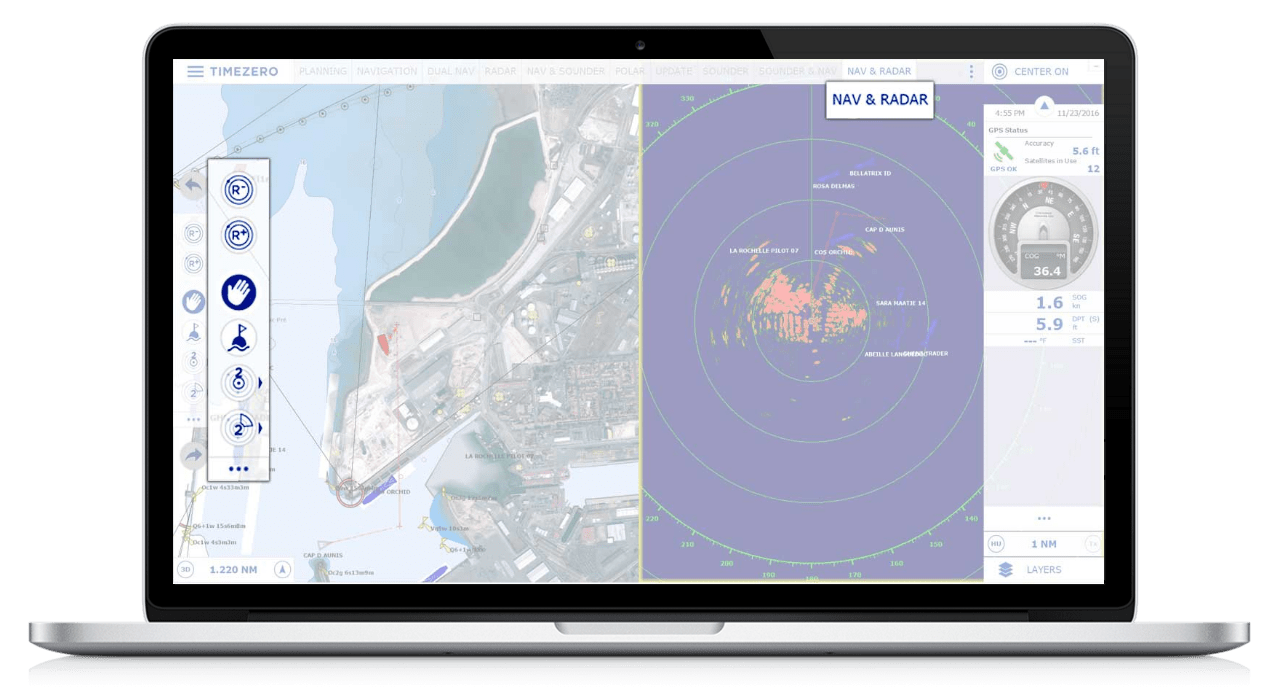

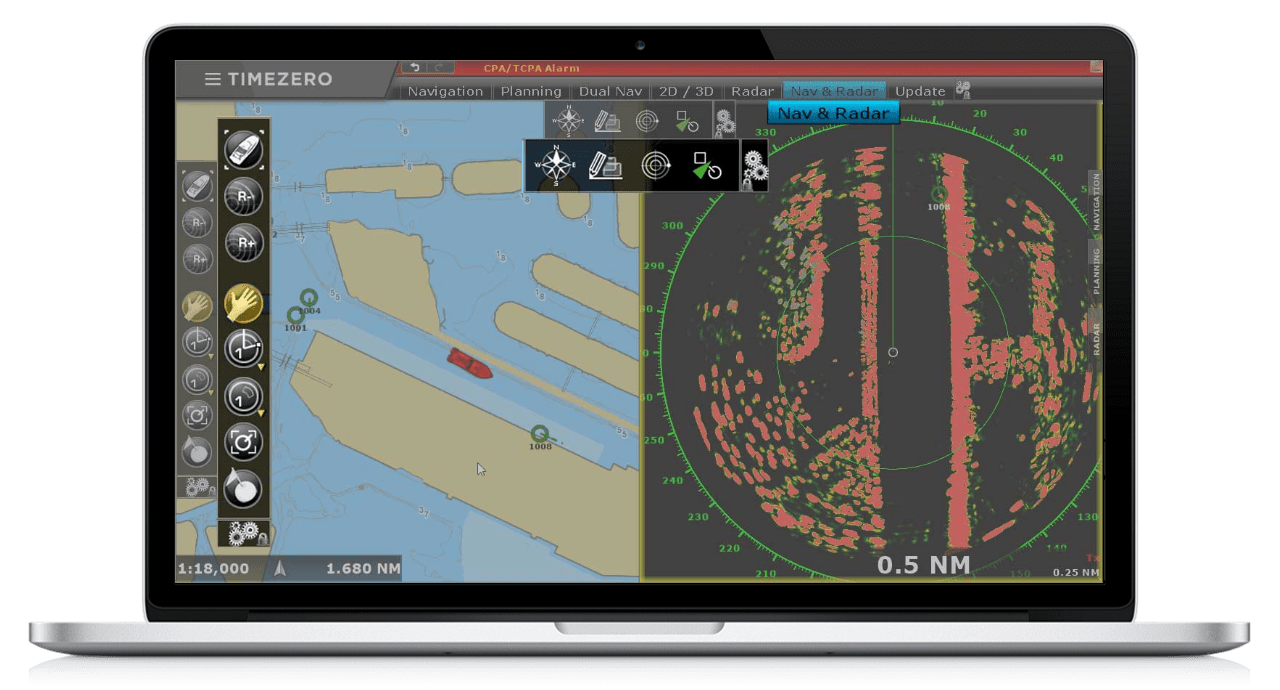

TZ Radar Module (with Ethernet Furuno Radar) includes:

OptionalOptional
  • DRS and FAR Radar network connection (view and control the radar)
  • Shared Charts Licensing with NavNet MFDs
  • User Objects and Active Route Synchronization with NavNet TZtouch2 (v7)
  • Route Synchronization with NavNet 3D and NavNet TZtouch
  • Full Screen Radar Work Space and Chart Radar Overlay
  • Local ARPA Algorithm with Automatic ARPA acquisition (guard zone)

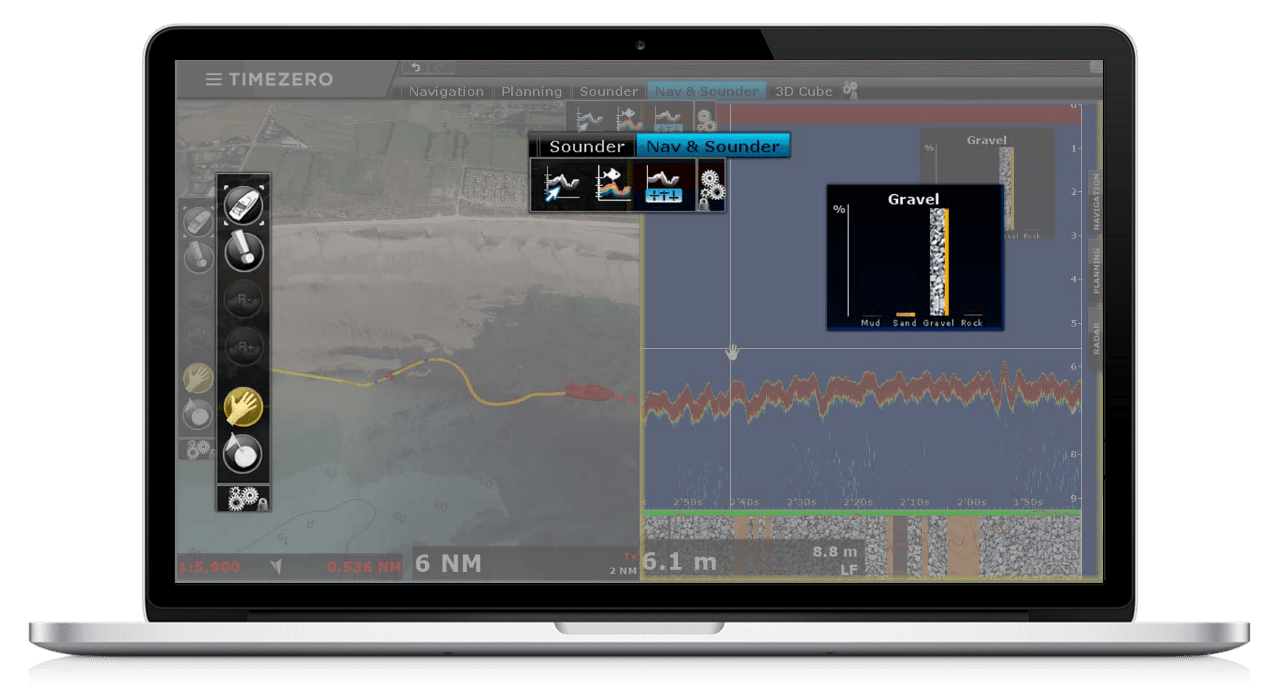

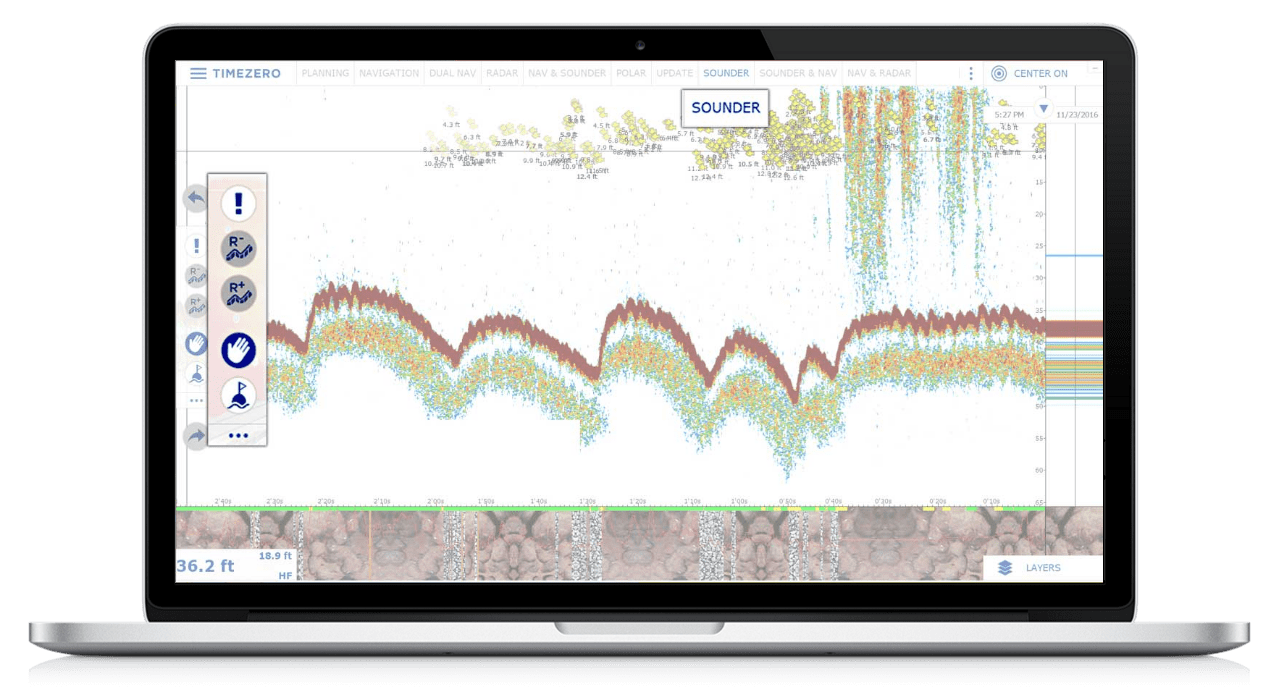

TZ Sounder Module (with Furuno Ethernet Sounder) includes:

OptionalOptional
  • Sounder network connection (view and control the sounder)
  • Full Screen Sounder Work Space with echogram history

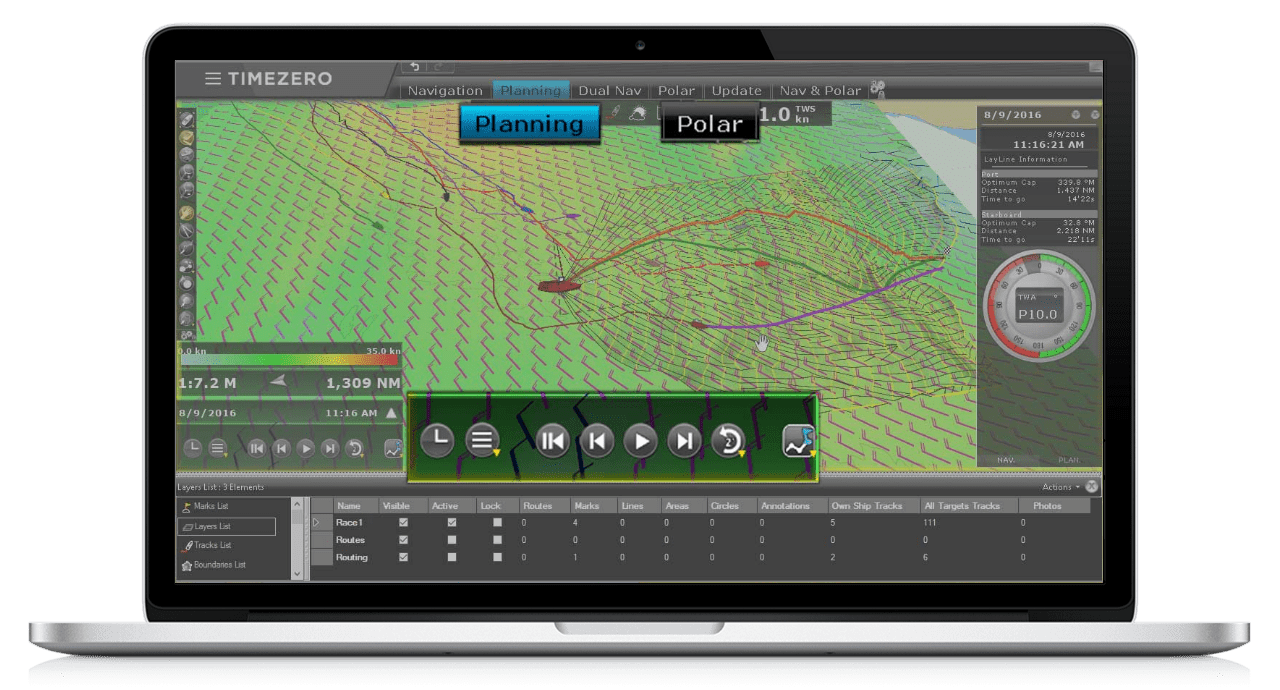

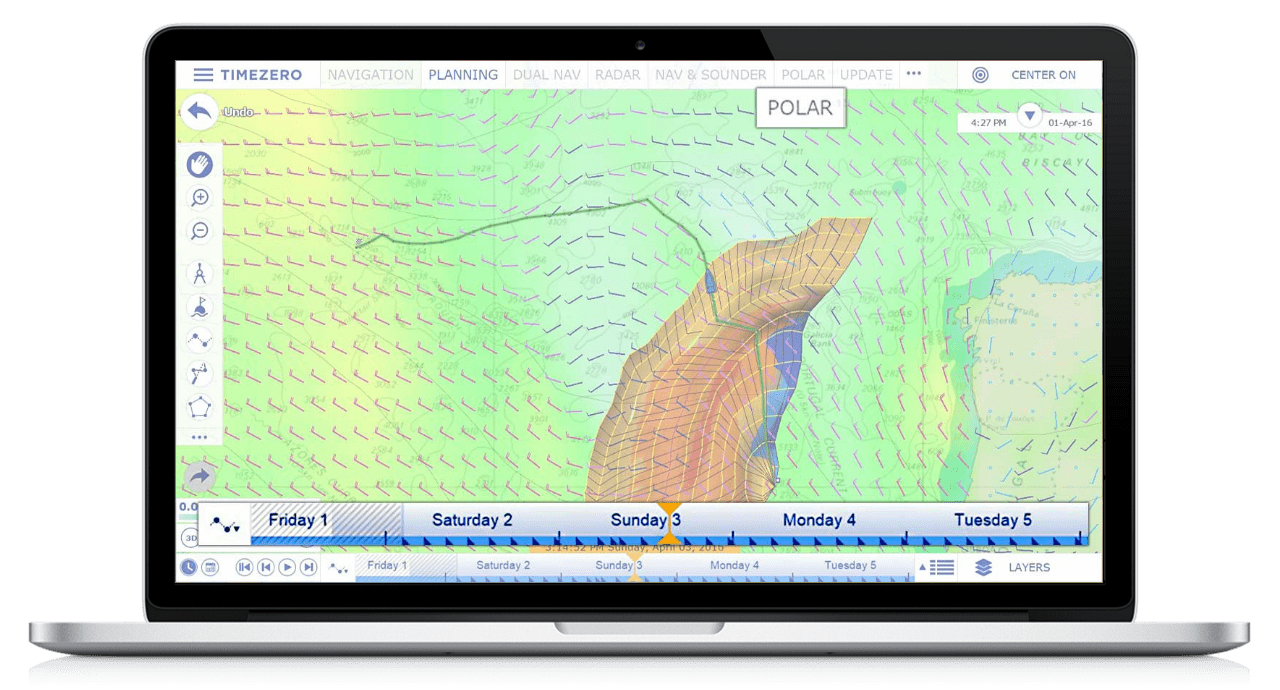

TZ Routing Module includes:

OptionalOptional
  • Routing according to wind, waves and currents
  • Isochrones with SailSet overlay
  • Routing calculation automatically avoiding the coastline and shallow water (possibility to set the depth limit)
  • Dual route calculation sail/motor (depending on the wind and theorical speed limit)
  • Expected wind conditions display along the track
  • Alternate routing
  • Routing Detail (List)
  • Routing and Weather Animation
  • Laylines (requires wind sensor)
  • Polar workspace : to display and modify Wind and SailSet Polar files
  • Polar % modification
  • Adjusting GRIB Weather files
  • Routing variability calculation and display

TZ PBG Module includes:

Optional
  • Fishing WorkSpace allowing to customize depth shading and contour lines
  • 3D WorkSpace

TZ WASSP Multi-Beam Module (*)

Optional

TZ DFF3D Multi-Beam Module (*)

Optional

TZ Trawl Positioning Module

Optional

TZ Bottom Hardness Module (*)

Optional

TZ VDR (Voyage Data Recorder) Module

Optional

TZ S57 / S63 Module

Optional

Notes:
(*) - You must have the PBG Module first, in order to be able to acquire the Multi-Beam Sounder WASSP or DFF3D module or Bottom Hardness module.
